MaxCell MaxWrap®

MaxCell MaxWrap

MaxCell MaxWrap® is a new OSP fabric mesh solution that is applied around cable as it is pulled into conduit. MaxCell MaxWrap eliminates the need for a two-step cable pulling installation process, as with traditional construction, reducing installation time and stress on the cable. MaxCell MaxWrap® protects the installed cable in greenfield applications plus existing cable overlay applications.

  • Reduces pulling tension exerted on cable during install. Cable only sees 15% of the total pulling tension during installation
  • Solves cabling issues for difficult conduit spans
  • Reduces installation time by encompassing the cable as it is being installed in the duct/conduit Reduces time to market by utilizing existing ducts/pathways more efficiently
  • Reduces pulling tension exerted on cable during installation
  • Avoids delays associated with installing new duct in an overbuild application (boring, trenching, permitting, and right-of-way)
  • Can be pulled further than traditional applications because of protection. Documented cases over 5000ft have been successful
  • Cut and abrasion resistant
  • Resistant to ground chemicals and petroleum products
  • Manufactured in the U.S.A.

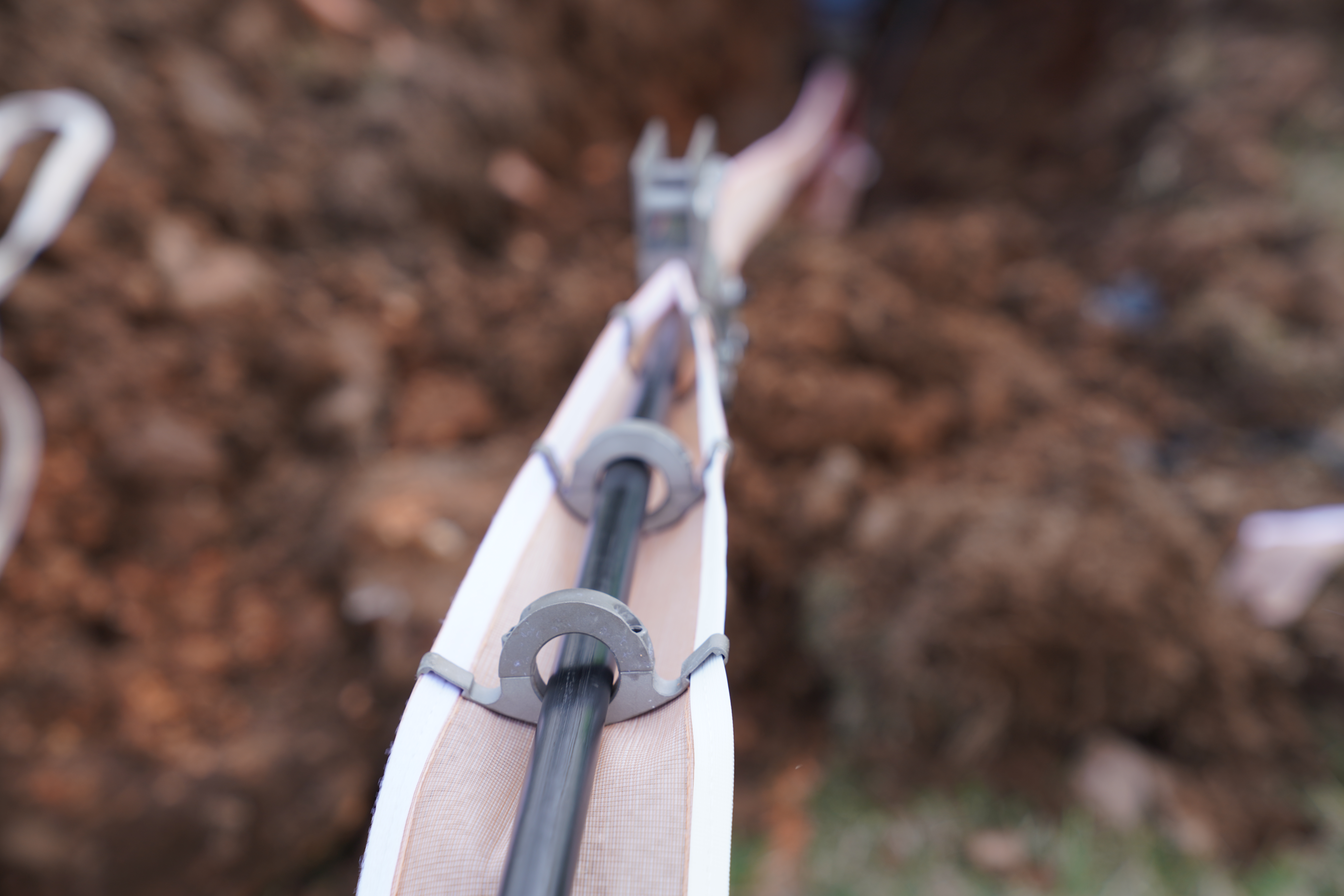

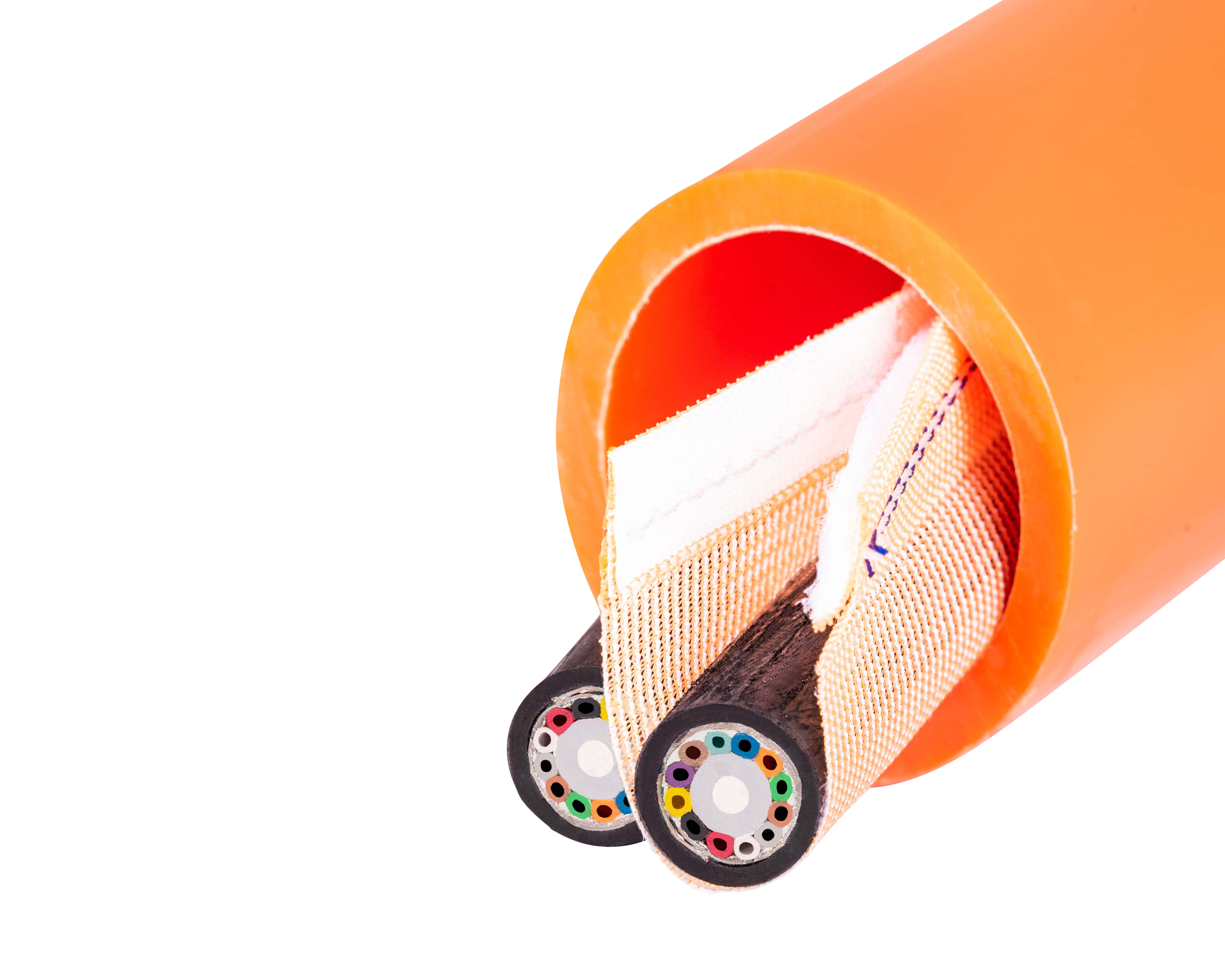

MaxWrap Open MaxWrap Cable
IMPORTANT INSTALLATION TIPS

- On-site Technical Assistance available for first time installations.
- Lubrication is recommended to decrease friction during installation.
- MaxWrap® Applicator required for installation, contact MaxCell to coordinate install.
- Designers/Installers should make every effort to conform to industry standards (BICSI best practices and ANSI standards) with regard to distances between any two pull points, number of bends while also adhering to the cable manufacturer's maximum pulling tension specifications. Assessment of conduit fill ratios recommended prior to any MaxCell MaxWrap® and cable installation.

MaxCell Detectable

Product Information

PART NUMBER DESCRIPTION MAX SUPPORTED CABLE O.D.
MXW3713-5300 MAXWRAP - FABRIC MESH CABLE WRAP FOR 2” AND SMALLER DUCT, SUPPORTS UP TO 0.5" (13mm) CABLE O.D., 5,300FT 0.0" - 0.5" (up to 13mm)
MXW3713-10000 MAXWRAP - FABRIC MESH CABLE WRAP FOR 2” AND SMALLER DUCT, SUPPORTS UP TO 0.5" (13mm) CABLE O.D., 10,000FT 0.0" - 0.5" (up to 13mm)
MXW4919-5300 MAXWRAP - FABRIC MESH CABLE WRAP FOR 2” AND SMALLER DUCT, SUPPORTS 0.51"-0.75" (14-19mm) CABLE O.D., 5,300FT 0.51" - 0.75" (14-19mm)
MXW4919-10000 MAXWRAP - FABRIC MESH CABLE WRAP FOR 2” AND SMALLER DUCT, SUPPORTS 0.51"-0.75" (14-19mm) CABLE O.D., 10,000FT 0.51" - 0.75" (14-19mm)
MXW6225-5300 MAXWRAP - FABRIC MESH CABLE WRAP FOR 2” AND SMALLER DUCT, SUPPORTS 0.76"-1.00" (20-25mm) CABLE O.D., 5,300FT 0.76" - 1.00" (20-25mm)
MXW6225-10000 MAXWRAP - FABRIC MESH CABLE WRAP FOR 2” AND SMALLER DUCT, SUPPORTS 0.76"-1.00" (20-25mm) CABLE O.D., 10,000FT 0.76" - 1.00" (20-25mm)
MXW7232-5300 MAXWRAP - FABRIC MESH CABLE WRAP FOR 2” AND SMALLER DUCT, SUPPORTS 1.01" - 1.25" (26mm-32mm) CABLE O.D., 5,300FT 1.01" - 1.25" (26mm-32mm)
MXW7232-10000 MAXWRAP - FABRIC MESH CABLE WRAP FOR 2” AND SMALLER DUCT, SUPPORTS 1.01" - 1.25" (26mm-32mm) CABLE O.D., 10,000FT 1.01" - 1.25" (26mm-32mm)
