For use in 1.10" to 4" Conduits in 1, 2, 3 and 4-Cell Configurations

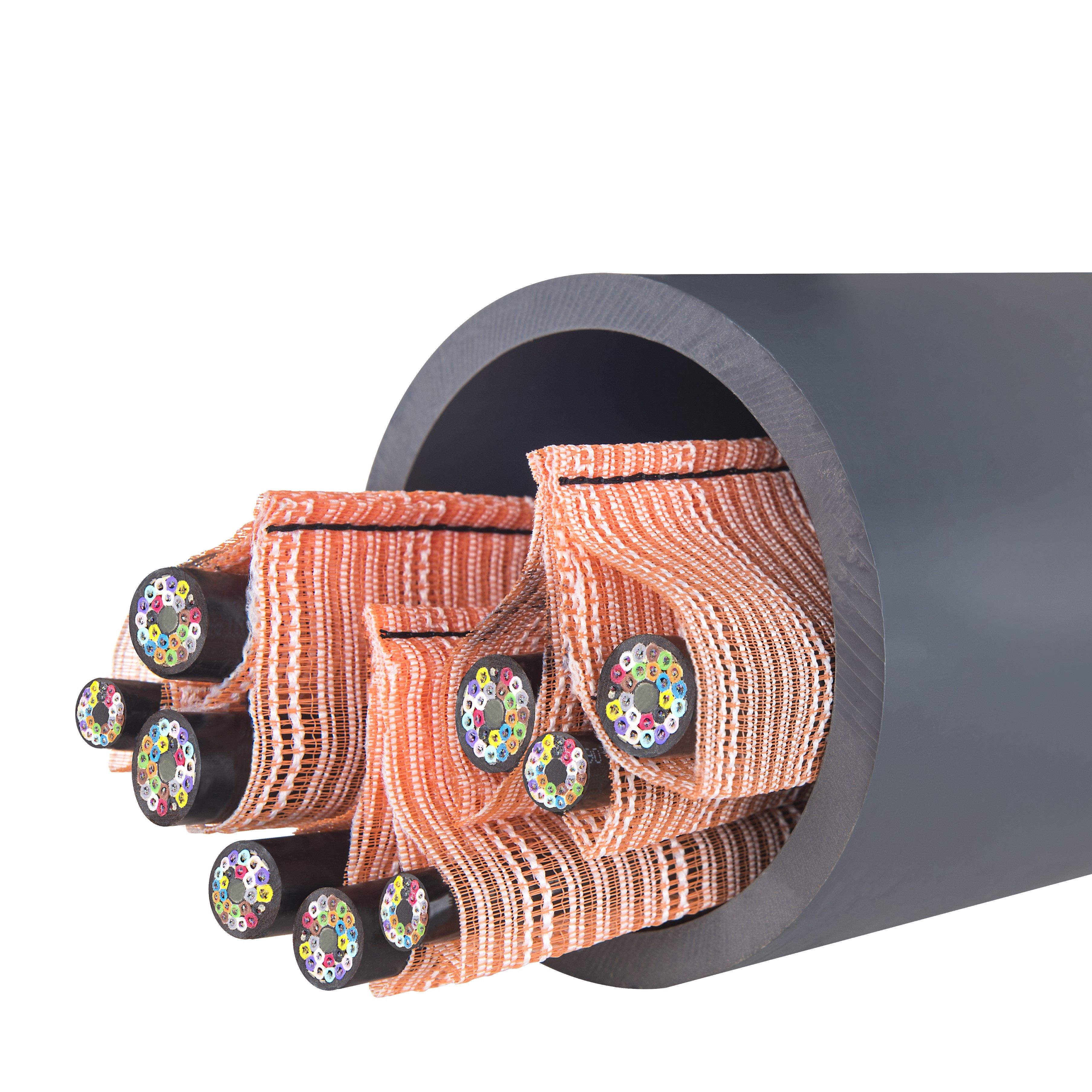

MaxCell® Edge products can be used to create additional pathways in small conduits and are designed for applications where space is limited.

MaxCell® Edge Features

  • New patented fabric design may reduce pulling tension by up to 20% over previous MaxCell versions
  • Solves cabling issues for smaller ducts, allowing a range of cable sizes
  • Enables overlay of cables in occupied conduits
  • Reduces or eliminates number of conduits required in new construction
  • Pre-lubed for easier installation
  • Bright orange for easy identification in networks
  • Available in Detectable version
  • Available in reel lengths of 500 to 10,000 feet

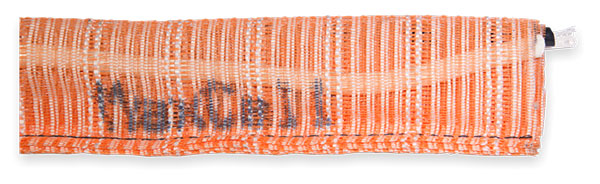

MaxCell Edge
MaxCell Edge

Product Information

1 Inch
PRODUCT # MIN CONDUIT ID CELLS REPLACES MAX CABLE DIAMETER PER CELL TYPICAL PULL LENGTH MAX PULL LENGTH
MXE28101 1.10" 1 Cell N/A .40” 800’ 1500’
MXE28102 1.10" 2 Cell N/A .40” 800’ 1500’
MXE28103 1.10" 3 Cell N/A .40” 800’ 1500’
MXE32121 1.25" 1 Cell MXCM3301 .45” 800’ 1500’
MXE32122 1.25" 2 Cell MXCM3302 .45” 800’ 1500’
MXE32123 1.25" 3 Cell MXCM3303 .45” 800’ 1500’
MXE36141 1.50" 1 Cell N/A .55” 800’ 1500’
MXE36142 1.50" 2 Cell N/A .55” 800’ 1500’
MXE36143 1.50" 3 Cell N/A .55” 800’ 1500’
MXE44181 1.75" 1 Cell N/A .70” 800’ 1500’
MXE44182 1.75" 2 Cell N/A .70” 800’ 1500’
MXE44183 1.75" 3 Cell N/A .70” 800’ 1500’
MXE44184 1.75" 4 Cell N/A .70” 800’ 1500’
  DOWNLOAD MAXCELL EDGE 1" SPEC SHEET

2 Inch
PRODUCT # MIN CONDUIT ID CELLS REPLACES MAX CABLE DIAMETER PER CELL TYPICAL PULL LENGTH MAX PULL LENGTH
MXE52221 2.00" 1 Cell MXC2001 .85” 800’ 1500’
MXE52222 2.00" 2 Cell MXC2002 .85” 800’ 1500’
MXE52223 2.00" 3 Cell MXC2003 .85” 800’ 1500’
MXE52224 2.00" 4 Cell N/A .85” 800’ 1500’
  DOWNLOAD MAXCELL EDGE 2" SPEC SHEET

3 Inch
PRODUCT # MIN CONDUIT ID CELLS REPLACES MAX CABLE DIAMETER PER CELL TYPICAL PULL LENGTH MAX PULL LENGTH
MXE64283 3.00" 3 Cell MXC3456 1.05” 1250’ 2000’
  DOWNLOAD MAXCELL EDGE 3" SPEC SHEET

4 Inch
PRODUCT # MIN CONDUIT ID CELLS REPLACES MAX CABLE DIAMETER PER CELL TYPICAL PULL LENGTH MAX PULL LENGTH
MXE86383 4.00" 3 Cell MXC4003 1.50” 1250’ 2000’
  DOWNLOAD MAXCELL EDGE 4" SPEC SHEET

MaxCell® Edge Detectable Features

  • Solves cabling issues for smaller ducts, allowing a range of cable sizes
  • Enables overlay of cables in occupied conduits
  • Reduces or eliminates number of conduits required in new construction
  • Melting point of 419°F (almost twice that of HDPE)
  • Resistant to ground chemicals and petroleum products
  • Constructed of PET multifilament and Nylon 6 monofilament yarns
  • Patented fabric design may reduce pulling tension by up to 20% over previous MaxCell versions
  • Sewn-in 18AWG solid copper wire suitable for direct wired toning equipment and above ground handheld locators
  • Pre-lubed for lower friction during MaxCell and cable installation
  • Manufactured in the U.S.A.

Product Information

1 Inch
PRODUCT # MIN CONDUIT ID CELLS REPLACES MAX CABLE DIAMETER PER CELL TYPICAL PULL LENGTH MAX PULL LENGTH
MXED28101 1.10" 1 Cell N/A .40” 800’ 1500’
MXED28102 1.10" 2 Cell N/A .40” 800’ 1500’
MXED28103 1.10" 3 Cell N/A .40” 800’ 1500’
MXED32121 1.25" 1 Cell MXDM3301 .45” 800’ 1500’
MXED32122 1.25" 2 Cell MXDM3302 .45” 800’ 1500’
MXED32123 1.25" 3 Cell MXDM3303 .45” 800’ 1500’
MXED36141 1.50" 1 Cell N/A .55” 800’ 1500’
MXED36142 1.50" 2 Cell N/A .55” 800’ 1500’
MXED36143 1.50" 3 Cell N/A .55” 800’ 1500’
MXED44181 1.75" 1 Cell N/A .70” 800’ 1500’
MXED44182 1.75" 2 Cell N/A .70” 800’ 1500’
MXED44183 1.75" 3 Cell N/A .70” 800’ 1500’
MXED44184 1.75" 4 Cell N/A .70” 800’ 1500’
  DOWNLOAD MAXCELL EDGE DETECTABLE 1" SPEC SHEET

2 Inch
PRODUCT # MIN CONDUIT ID CELLS REPLACES MAX CABLE DIAMETER PER CELL TYPICAL PULL LENGTH MAX PULL LENGTH
MXED52221 2.00" 1 Cell MXC2001 .85” 800’ 1500’
MXED52222 2.00" 2 Cell MXC2002 .85” 800’ 1500’
MXED52223 2.00" 3 Cell MXC2003 .85” 800’ 1500’
MXED52224 2.00" 4 Cell N/A .85” 800’ 1500’
  DOWNLOAD MAXCELL EDGE DETECTABLE 2" SPEC SHEET

3 Inch
PRODUCT # MIN CONDUIT ID CELLS REPLACES MAX CABLE DIAMETER PER CELL TYPICAL PULL LENGTH MAX PULL LENGTH
MXED64283 3.00" 3 Cell MXD3456 1.05” 1250’ 2000’
  DOWNLOAD MAXCELL EDGE DETECTABLE 3" SPEC SHEET

4 Inch
PRODUCT # MIN CONDUIT ID CELLS REPLACES MAX CABLE DIAMETER PER CELL TYPICAL PULL LENGTH MAX PULL LENGTH
MXED86383 4.00" 3 Cell MXD4003 1.50” 1250’ 2000’
  DOWNLOAD MAXCELL EDGE DETECTABLE 4" SPEC SHEET

Maximum pull length is dependent on conduit conditions. MaxCell Edge, Plenum, Riser, and Detectable are available in multiple sizes and configurations. Contact customer service for more information on your specific application.
